Insulation Resistance (IR) Test – Ensuring
Transformer Health
When it comes to electrical equipment, ensuring reliability and safety is paramount. One of the most critical assessments for transformers and other electrical devices is the Insulation Resistance (IR) Test. This test is vital for detecting potential problems early, ensuring smooth operations, and avoiding costly repairs.
What is the Insulation Resistance (IR) Test?
The IR Test measures the resistance of the insulation material between the conductive parts of electrical equipment. A high resistance reading indicates healthy insulation, while a low reading could suggest moisture, aging, contamination, or breakdown of insulation.
Why is the IR Test Important?
Detects Insulation Deterioration – Identifies early signs of aging, cracks, or moisture ingress.
Prevents Electrical Failures – Minimizes the risk of short circuits and system breakdowns. Enhances Safety Helps prevent leakage currents that could be
hazardous. Improves Equipment Lifespan Enables preventive maintenance, reducing the need for costly repairs.

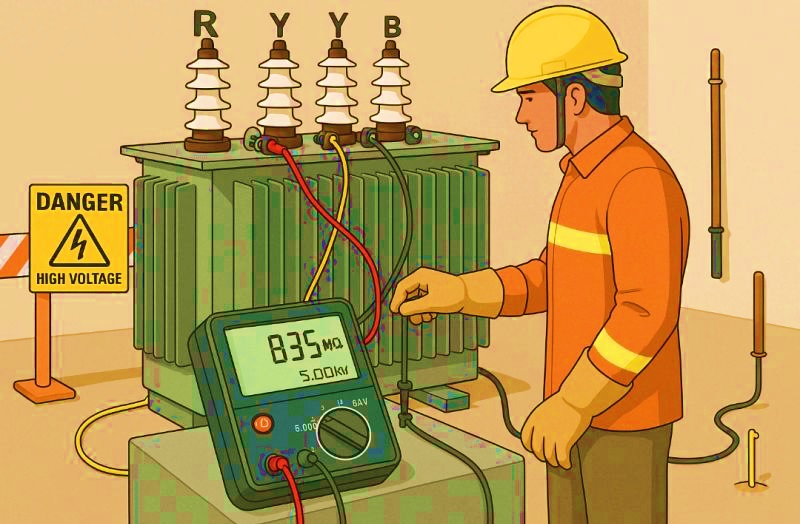

How is the IR Test Performed?
The IR Test is typically conducted using a Megger (Insulation Resistance Tester). This device applies a high DC voltage (usually between 500V to 5kV) across the insulation and measures the resistance.
Step-by-Step Process:
- -Disconnect Power: Ensure the transformer or equipment is de-energized. 2 Select Test Voltage:
- -Choose the voltage appropriate for the equipment’s rating (e.g., 1kV for low voltage, 5kV for high voltage).
- -Apply Voltage: Connect one lead to the conductor and the other to the ground.
- -Measure Resistance:
- -The Megger applies the DC voltage and displays the
- -insulation resistance in mega-ohms (ΜΩ).
- -Analyze
- -Results: Compare the readings with standard values to assess the insulation’s health.
Interpreting IR Test Results:
- Above 1000 ΜΩ: Excellent insulation condition.
- 100-1000 ΜΩ: Good insulation, but ongoing monitoring recommended
Polarization Index (PI) Test:
The Polarization Index (PI) is the ratio of the 10-minute to 1-minute IR values. A PI value above 2 signifies healthy insulation, while below 1.5 may indicate potential issues.
Applications of IR Testing:
- Power Transformers – Ensures insulation integrity of transformer windings.
- Motors & Generators – Detects insulation breakdown in rotating machines.
- Cables & Switchgear – Verifies insulation health in high-voltage equipment.
Key Takeaways:
✓ The IR Test is an essential preventive maintenance tool for electrical systems.
✓ Regular testing helps detect insulation degradation before major failures occur.
✓ Environmental factors like moisture, dirt, or aging can lower insulation resistance, increasing failure risks.
✓ Always follow safety precautions when performing high-voltage tests.
Have you ever experienced insulation failure in electrical equipment? Share your insights in the comments below!
